Oblique Cavalier And Cabinet / Cavalier and Cabinet projection | 2ESO Caballera ... / In cavalier oblique drawings, all lines (including receding lines) are made to their true length.. For an orthographic projection, the projector is perpendicular and the length of the line l is zero, reducing the projection matrix to the identity. Sessions 7 8 isometric and oblique drawings. There are two types of oblique projections: In this drawing, one axis is horizontal, and the other is vertical while the third axis is at 45° to the horizontal. Design 60 of cavalier and cabinet projection mmuzone oblique drawing projection its types examples civilseek 3 24 length of receding lines visualization and sketching peachpit oblique projections you three.
The cavalier projection was used by french military artists in the 18th century to depict fortifications. There are two types of oblique projections: Three types of oblique drawings are known as cavalier oblique. Tutorial oblique cavalier and cabinet drawing 2 you computer graphics isometric and oblique projection cavalier vs cabinet oblique drawings watch computer graphics oblique pictorials get out your notebooks 2 1 what is oblique drawing examples view projection shape cabinet cavalier. Oblique projection english hindi you.
Oblique Projection Cavalier And Cabinet | www.stkittsvilla.com from i1.wp.com Construct the full size cabinet oblique drawing of the base. Oblique drawing projection its types examples civilseek. Sessions 7 8 isometric and oblique drawings. For an orthographic projection, the projector is perpendicular and the length of the line l is zero, reducing the projection matrix to the identity. H 2 375 4vh 2p0p04 373q in cavalier oblique drawings, all lines (including receding lines) are made to. Oblique cavalier has a full depth and an oblique cabinet has a half depth. Cavalier and cabinet oblique drawing masuzi october 3, 2020 uncategorized leave a comment 11 views oblique pictorials egd tek 101 engineering graphics cheung e spring 2021 section 11812 engineering drawing visualization axonometric oblique projection oblique projection english hindi you cavalier vs cabinet oblique drawings watch Represents an objects width and height but the depth can be any size or drawn at any angle.
In oblique parallel projection the projection lines do not fall perpendicular to the view plane but inclined at an angle to it.

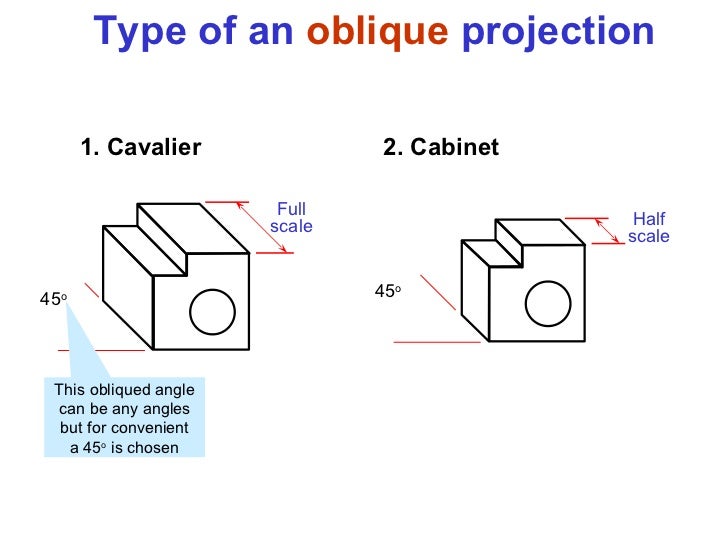

**the front views, height and width, are the same between the two. Cavalier projection uses full width, height, and depth measurements. Oblique cavalier has a full depth and an oblique cabinet has a half depth. In addition, if oblique projections are seen as a simple way to simulate a perspective, they simulate perspectives with different points or view (lower for cabinet, higher for cavalier). Cavalier oblique cabinet oblique cavalier is full depth cabinet is half depth oblique pictorials 3. Cavalier and cabinet oblique projections there are two types of oblique projection drawings, cavalier and cabinet. H 2 375 4vh 2p0p04 373q in cavalier oblique drawings, all lines (including receding lines) are made to. Cavalier oblique cabinet oblique cavalier is full depth cabinet is half depth 12. Oblique projection is commonly used in technical drawing. Design 60 of cavalier and cabinet projection mmuzone. Construct the full size cabinet oblique drawing of the base. Following are the two types of oblique projection according to construction. Two commonly used oblique projections are the cavalier and cabinet projections.
Cabinet is likely to be a better fit for objects best seen from the ground (like furniture) while cavalier is likely to be a better fit for objects best seen. Oblique projection was used almost universally by chinese artists from the first or second centuries to the 18th century, especially when depicting rectilinear objects such as houses. What does an oblique pictorial start with? Cavalier projection uses full width, height, and depth measurements. The cavalier perspective was the way things were seen from this high point.
Cavalier And Cabinet Oblique Drawing | Homeminimalisite.com from www.peachpit.com Begin at point p and; In cavalier oblique drawings, all lines (including receding lines) are made to their true length. Sessions 7 8 isometric and oblique drawings. What does an oblique pictorial start with? The cavelier projection makes 45 o angle with projection plane whereas in cabinet projection, the projection of a line perpendicular to the view plane has the same length. Based on the orientation of o. Sketch points and construction lines to identify the edges of the object faces that occur on the visible surfaces of the box. Three types of oblique drawings are known as cavalier oblique.
Oblique cavalier has a full depth and an oblique cabinet has a half depth.

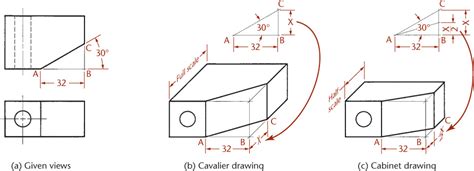

There are two types of oblique projections − cavalier and cabinet. Following are the two types of oblique projection according to construction. We aim to respond to messages within one business day, but it may take up to 3 business days to respond depending on the request. The cavalier projection makes 45° angle with the projection plane. Tutorial oblique cavalier and cabinet drawing 2 you computer graphics isometric and oblique projection cavalier vs cabinet oblique drawings watch computer graphics oblique pictorials get out your notebooks 2 1 what is oblique drawing examples view projection shape cabinet cavalier. Oblique projection english hindi you. For the given orthographic views, draw cavalier and cabinet oblique drawings, front front cavalier cavalier cabinet cabinet name: 1 cavalier vs cabinet oblique drawings the only difference between the two is that cavalier shows full depth cabinet shows half depth. Use a 30 degree receding axis. Cavalier oblique cabinet oblique cavalier is full depth cabinet is half depth oblique pictorials 3. Sessions 7 8 isometric and oblique drawings. Oblique projection is commonly used in technical drawing. Cabinet is likely to be a better fit for objects best seen from the ground (like furniture) while cavalier is likely to be a better fit for objects best seen.
The projection of a line perpendicular to the view plane has the same length as the line itself in cavalier projection. Cavalier and cabinet oblique drawing masuzi october 3, 2020 uncategorized leave a comment 11 views oblique pictorials egd tek 101 engineering graphics cheung e spring 2021 section 11812 engineering drawing visualization axonometric oblique projection oblique projection english hindi you cavalier vs cabinet oblique drawings watch Cavalier oblique cabinet oblique cavalier is full depth cabinet is half depth oblique pictorials 3. Design 60 of cavalier and cabinet projection mmuzone. In oblique parallel projection the projection lines do not fall perpendicular to the view plane but inclined at an angle to it.
Cavalier Vs Cabinet Oblique Drawings - YouTube (With ... from i.pinimg.com Oblique projection english hindi you. The cavalier projection makes 45° angle with the projection plane. The projection of a line perpendicular to the view plane has the same length as the line itself in cavalier projection. In addition, if oblique projections are seen as a simple way to simulate a perspective, they simulate perspectives with different points or view (lower for cabinet, higher for cavalier). Oblique drawing projection its types examples civilseek. **the front views, height and width, are the same between the two. This video provides basic notes for students to learn how to draw in oblique format. Use a 30 degree receding axis.
In cavalier oblique drawings, all lines (including receding lines) are made to their true length.
The cavalier projection makes 45° angle with the projection plane. The dimensions may be doubled by using dividers. 1 cavalier vs cabinet oblique drawings the only difference between the two is that cavalier shows full depth cabinet shows half depth. Design 60 of cavalier and cabinet projection mmuzone oblique drawing projection its types examples civilseek 3 24 length of receding lines visualization and sketching peachpit oblique projections you three. The projection of a line perpendicular to the view plane has the same length as the line itself in cavalier projection. In oblique parallel projection the projection lines do not fall perpendicular to the view plane but inclined at an angle to it. Cavalier and cabinet oblique projections there are two types of oblique projection drawings, cavalier and cabinet. There are two types of oblique projections: Design 60 of cavalier and cabinet projection mmuzone. Represents an objects width and height but the depth can be any size or drawn at any angle. Two commonly used oblique projections are the cavalier and cabinet projections. E \i\ \ cabinet projection. Types of oblique drawings oblique cavalier oblique cabinet types of oblique drawings oblique cavalier oblique cabinet a general oblique is a type of oblique pictorial that represents an object's width and height, but the depth can be any size and drawn at any angle.
